Semi Automatic Folder Gluer Pasting Machine

Ask Lasest Price
Brand Name :	Hh
Model Number :	2800mm
Certification :	CE EAC
Price :	negotiated
Payment Terms :	T/T
Supply Ability :	30 sets every month
Delivery Time :	5-8 days

Add to Cart

Product Details
Company Profile

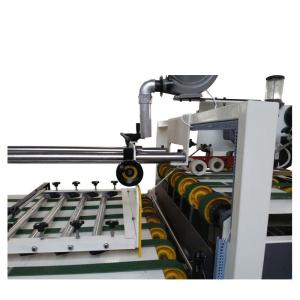

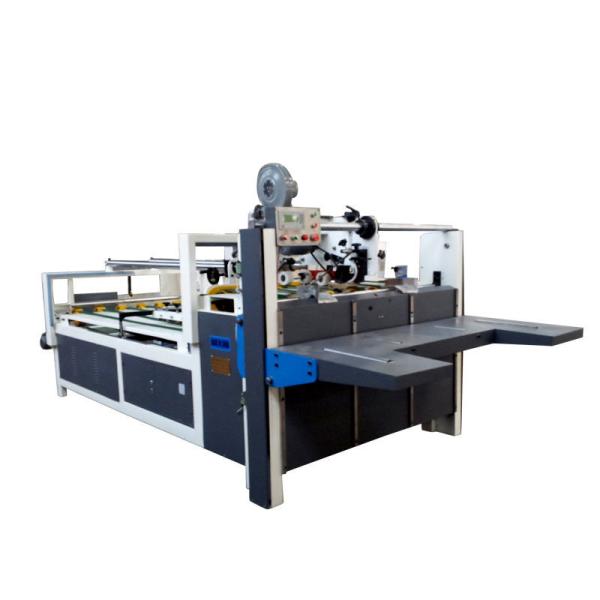

Semi Automatic Folder Gluer Pasting Machine

Function and Characteristics:

This machine is the last process equipment of the carton folding, it is used to combination of 3 and 5 layer corrugated cardboard production line( if need to glue 7 layer cardboard, we also can produce according customers’ appointed). Efficiency and production is attractive. The prominent advantage is low cost , strong adhesion, simple operating,saving labor and electric, runs smoothly, it is idea equipment for exporting advanced carton.

1.Working table
* control the feeding, reduce labor and improve work efficiency.
2.Press correction
* After gluing and the second pressing to the bonder is smooth and firm.
* Equipped automatic correction device to make the carton size is correctly, and effectively avoid knife and fork phenomenon
* Fan airing function
* Counting output devices and with the photoelectric correlated mechanism, When reaching to the const carton, it outputs
automatically.
3.Horizontal Output
* Press counting output signal, then work automatically, stacking and strapping conviently.
4.Main spare parts
* Gear reducer is known brand from China
* Electricity components from “Chint”
* Conveyor belt is made in XINBEX
* PLC from Delta.
* The whold gluing head usd of imported material with finish process, wear-resisting, correction resisting, easy to clean.

Technology Parameter:

Max size( length+ width)	2800
Min size( length+ width)	340
Max size(width+ height)	1200
Min size( width+ height)	240
Total Motor power	2.54kw
The length of Machine	4500
The Width of Machine	2100
The weight of Machine	2000
Machine speed	40
Dimension length×width×height (mm)	4000×2000×1900
